The ATEN CS1924ATC 4 Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes.

The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to four USB / DisplayPort-interfaced ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.

With two lockable DC jacks for power redundancy, the CS1924ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime.

Patented ATEN technology – Video DynaSync™, and EDID expert™ , combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.

The CS1924ATC creates a safer environment and enhanced operational efficiency for Air Traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.

Specification

Product
Product id	905236
Brand	Aten
Partnr	CS1924ATC-AT-G
EAN/UPC code	4710469343100

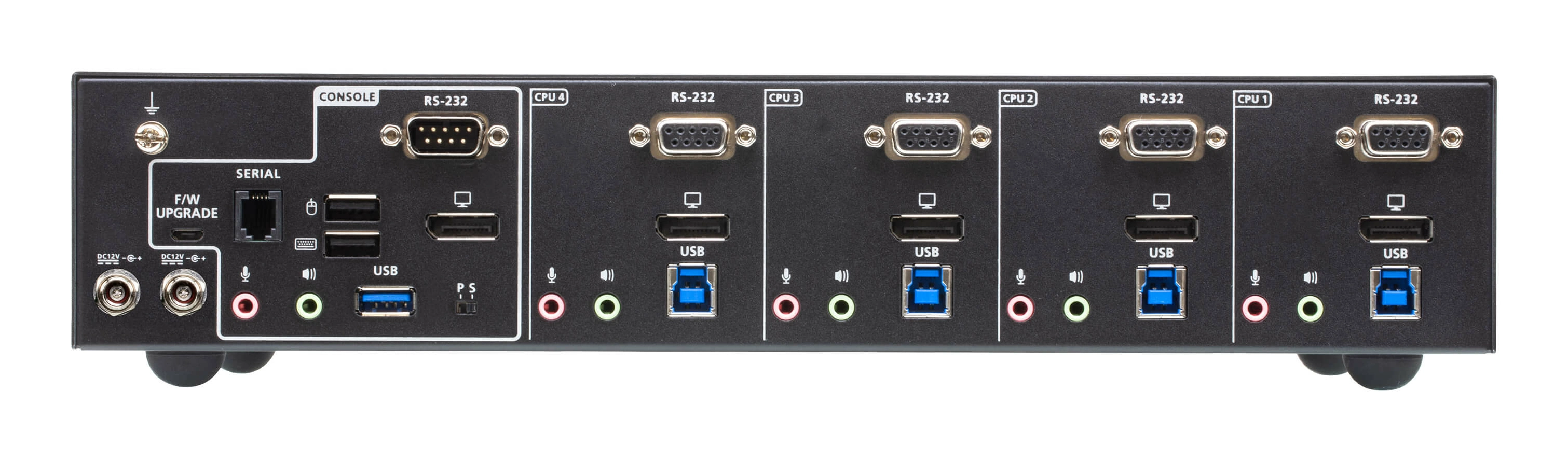

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	5
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	6
Console DisplayPorts ports quantity	1
USB connector type	Micro-USB, USB Type-A
Audio connections	Y
Headphone outputs	6
Number of microphone inputs	6
DC-in jack	Y
RJ-11 ports quantity	1
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 Pixels
Video bandwidth	60 Hz
Firmware upgradeable	Y
Design
Product colour	Black
Housing material	Metal
LED indicators	Y
Push button	Y
Hot keys	Y
Display
Built-in display	Y
Power
Power source	DC
Input voltage	12 V
Power consumption (typical)	16.84 W
Features
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 20 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	161 mm
Depth	335 mm
Height	65.5 mm
Weight	1880 g
