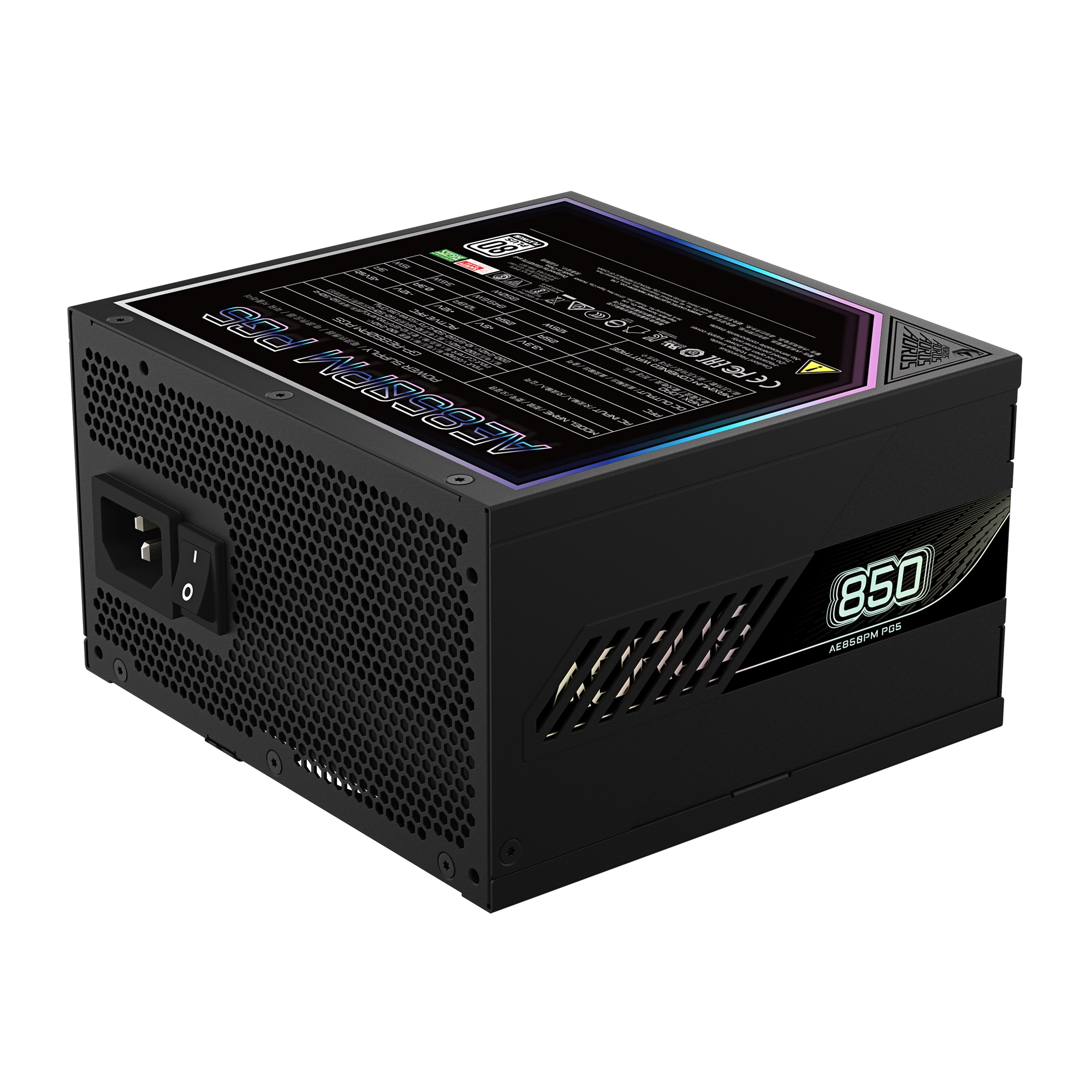

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specification

Product
Product id	985826
Brand	Gigabyte
Partnr	GP-AE850PM PG5
EAN/UPC code	4719331554262
Warranty (months)	10 years
Endurance
Mean time between failures (MTBF)	100000 uur
Power
Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	12 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	849.6 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	70.8 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power Good signal delay range	100 - 150 ms
Efficiency	90 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	650 mm
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Y
ATX power connector (20+4 pin)	Y
Floppy disk drive connector	Y
Floppy drive power connector	2
PCI Express connector	Y
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	Ball bearing
Design
Product colour	Black
Cooling type	Active
Fan diameter	120 mm
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Technical details
Warranty period	10 jaar
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2674 g
Packaging data
Package width	340 mm
Package depth	206 mm
Package height	120 mm
Package weight	3302 g
Package type	Box
