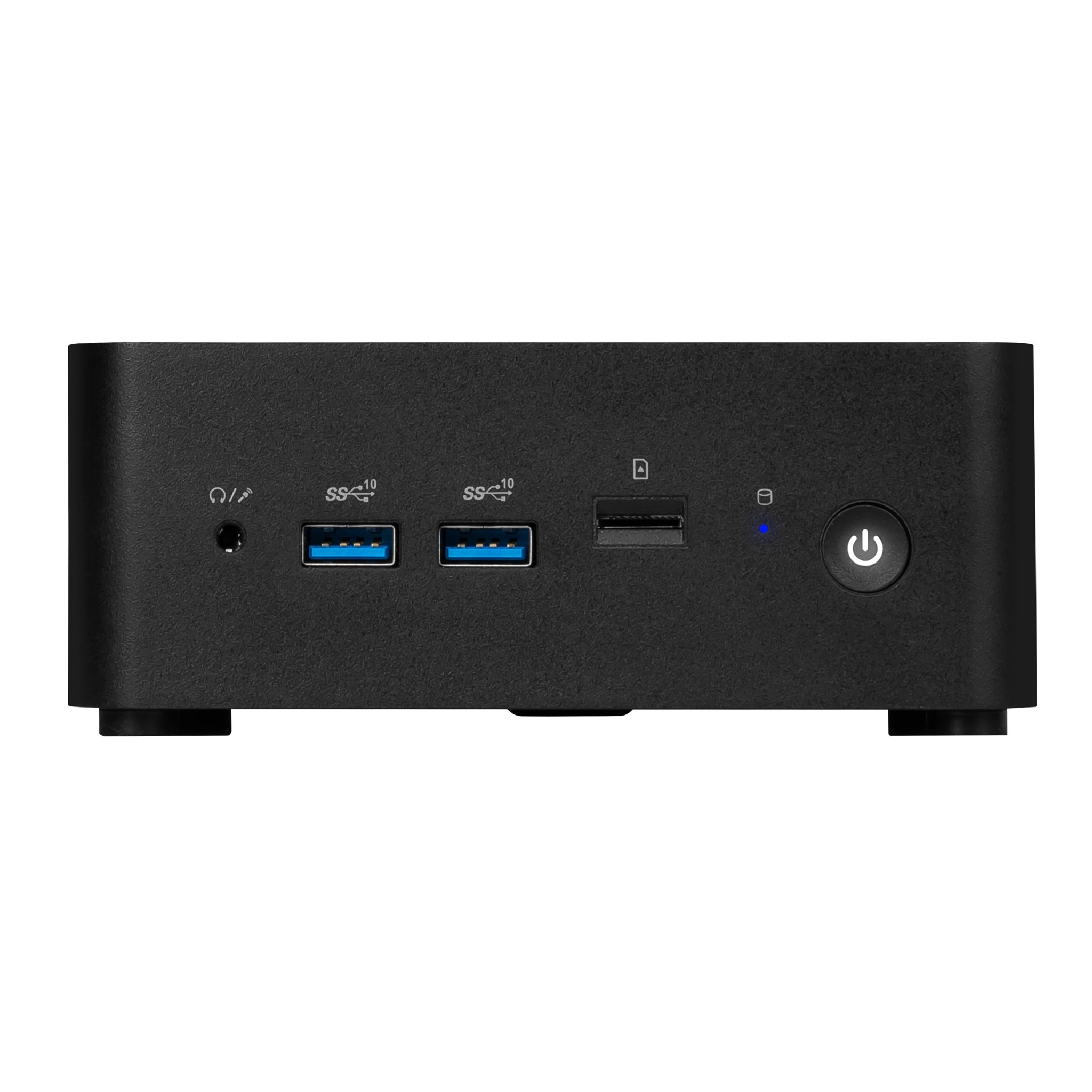

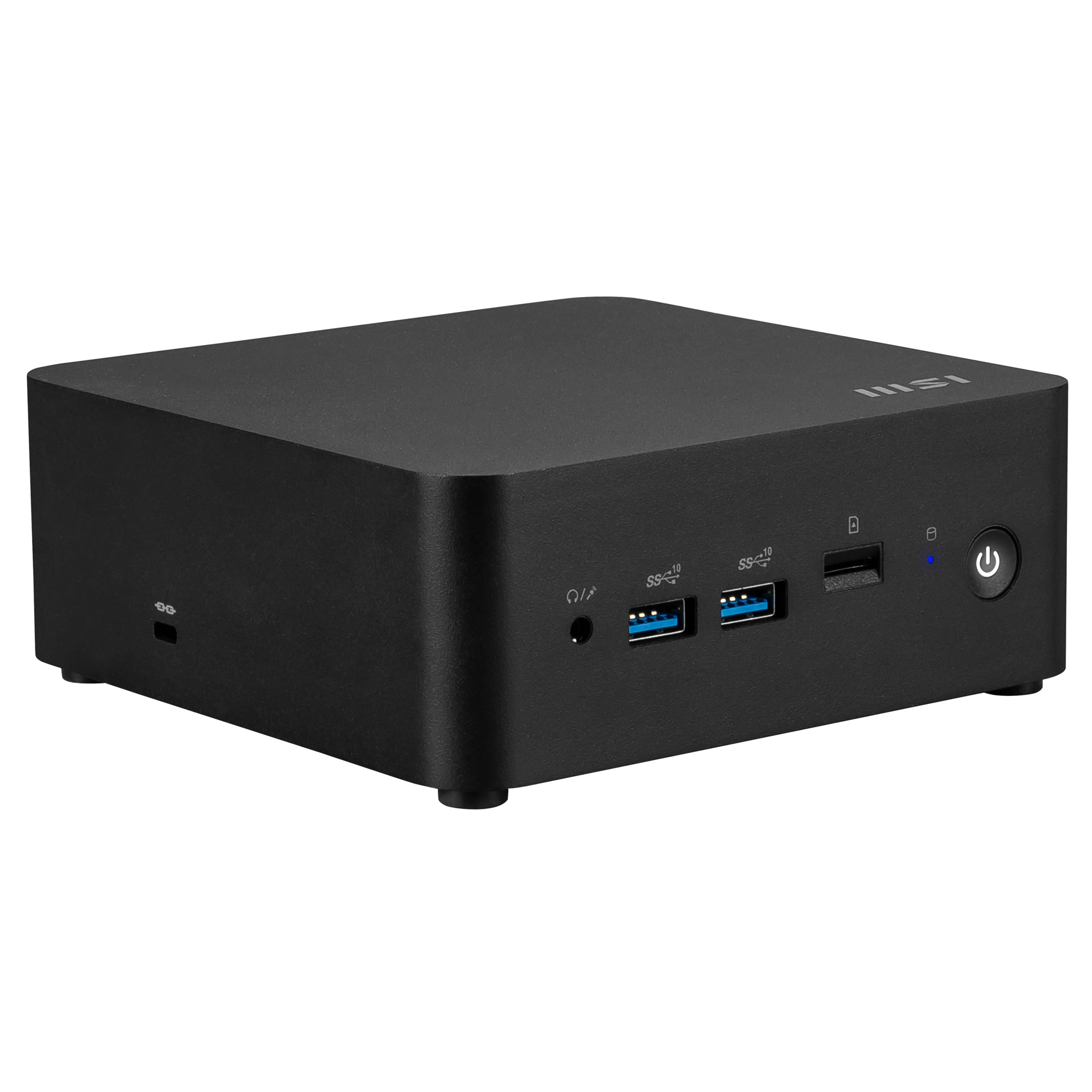

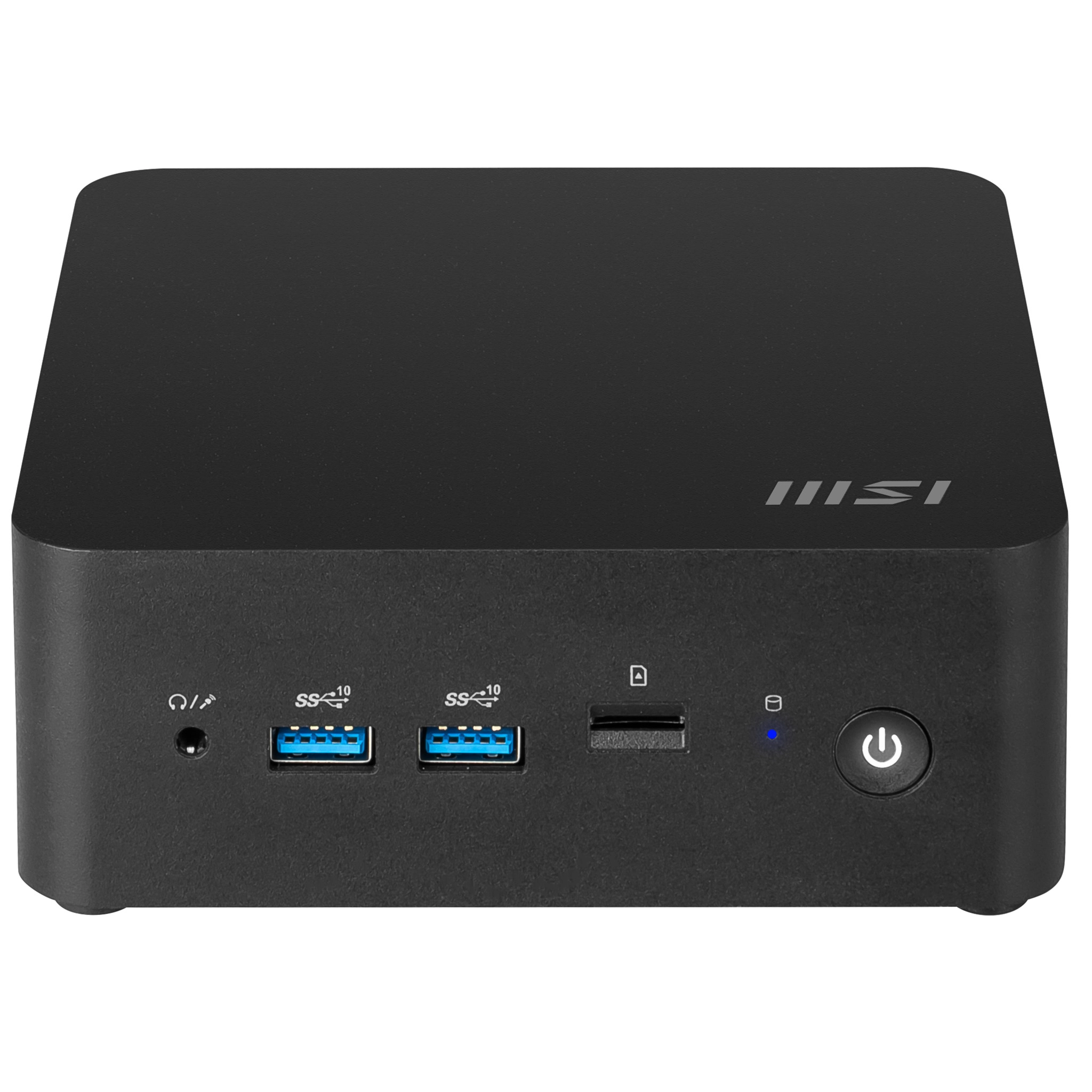

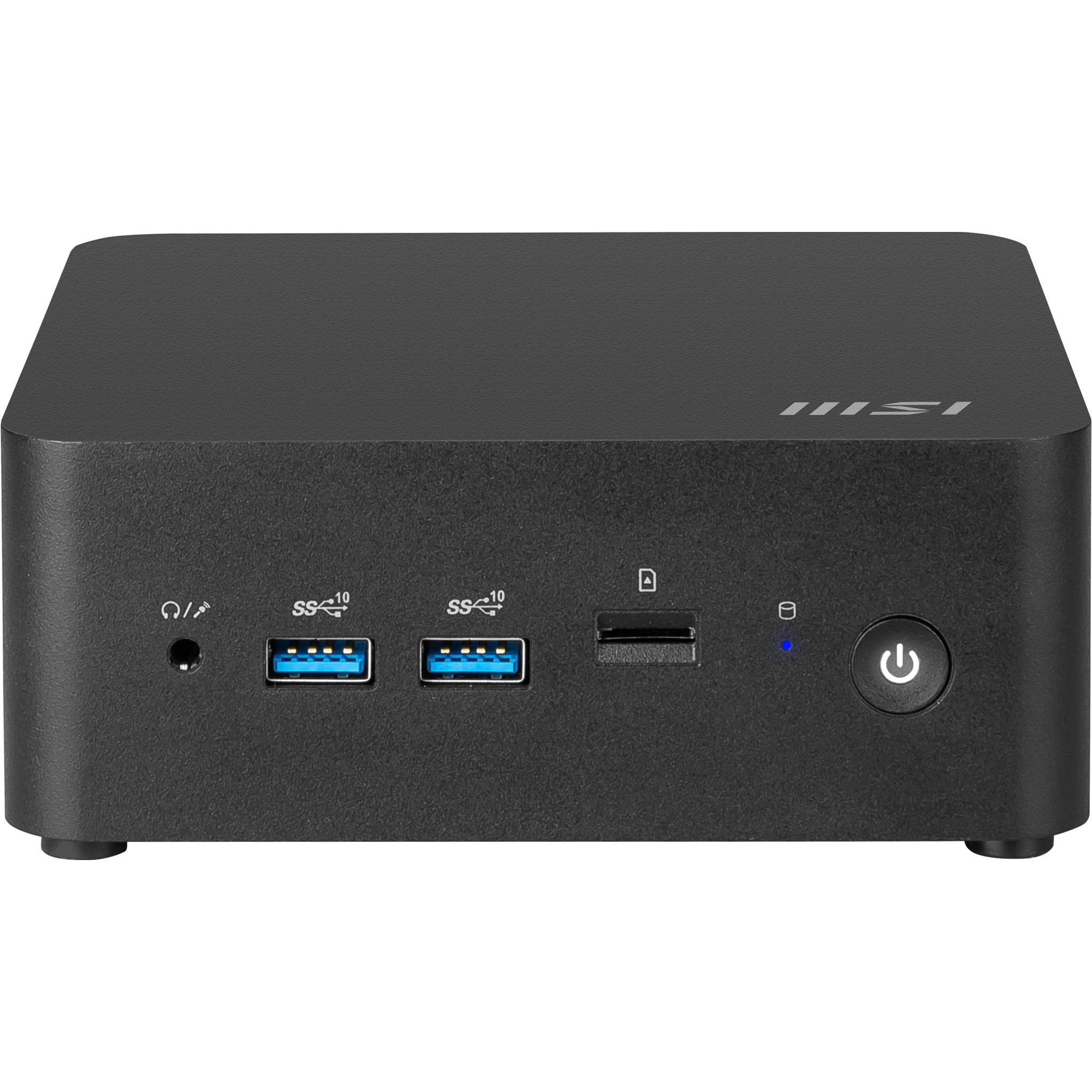

MSI Cubi NUC 1M-001EU. Processor family: Intel Core 7, Processor model: 150U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: 0.84L sized PC. Product type: Mini PC barebone. Weight: 0.625 g. Product colour: Black

Specification

Product
Product id	968888
Brand	MSI Micro-Star International
Partnr	CUBINUC1M001EU
EAN/UPC code	4711377221078
Warranty (months)	24 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core 7
Processor generation	Intel Core (Series 1)
Processor model	150U
Processor cores	10
Processor boost frequency	5.4 GHz
Performance cores	2
Efficient cores	8
Processor cache	12 MB
Processor cache type	Smart Cache
Performance-core base frequency	1.8 GHz
Processor threads	12
Efficient-core base frequency	1.2 GHz
Efficient-core Max Turbo Frequency	4 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Number of processors supported	1
Processor base power	15 W
Maximum turbo power	55 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Supported memory types	DDR5-SDRAM
Storage
Total storage capacity	1000 GB
Optical drive type	N
Card reader integrated	Y
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Compatible memory cards	MicroSD (TransFlash)
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Network
Ethernet LAN	Y
LAN controller	Intel I226-V
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Y
Bluetooth version	5.3

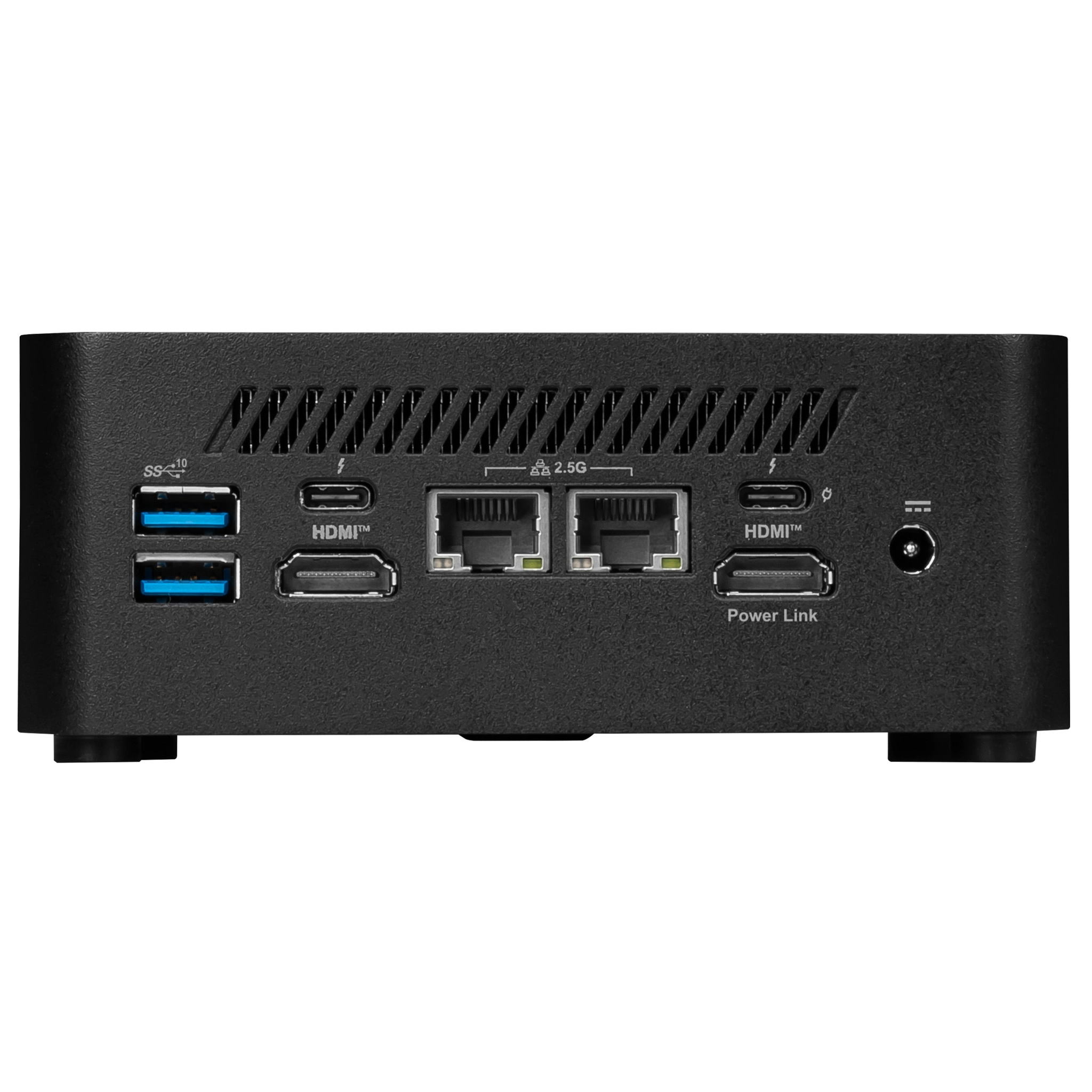

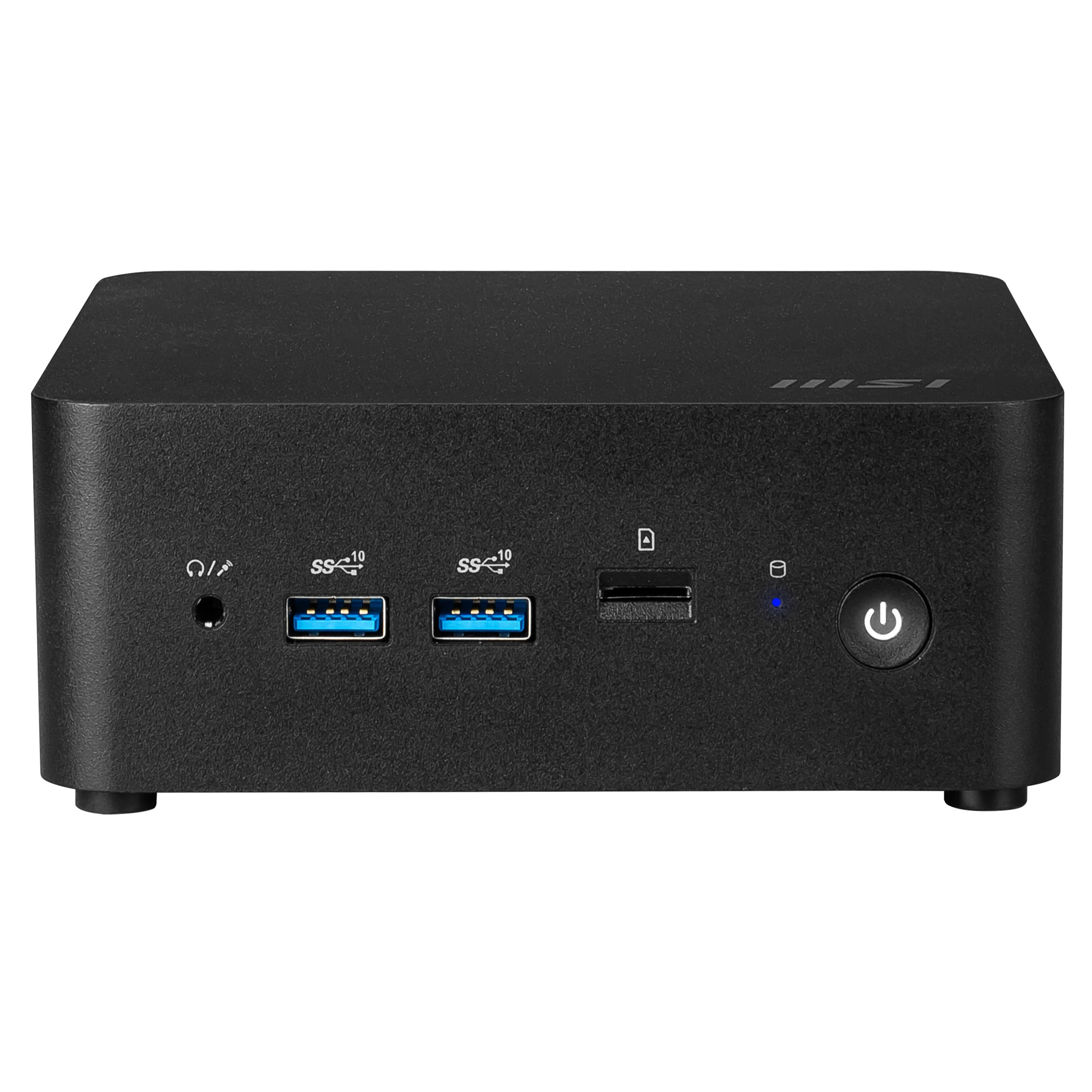

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Intel® Thunderbolt 4	Y
DVI port	N
Thunderbolt 4 ports quantity	2
HDMI ports quantity	2
HDMI version	1.4b/2.1
Ethernet LAN (RJ-45) ports	2
Microphone in	N
Combo headphone/mic port	Y
DC-in jack	Y
Design
Chassis type	0.84L sized PC
VESA mounting	Y

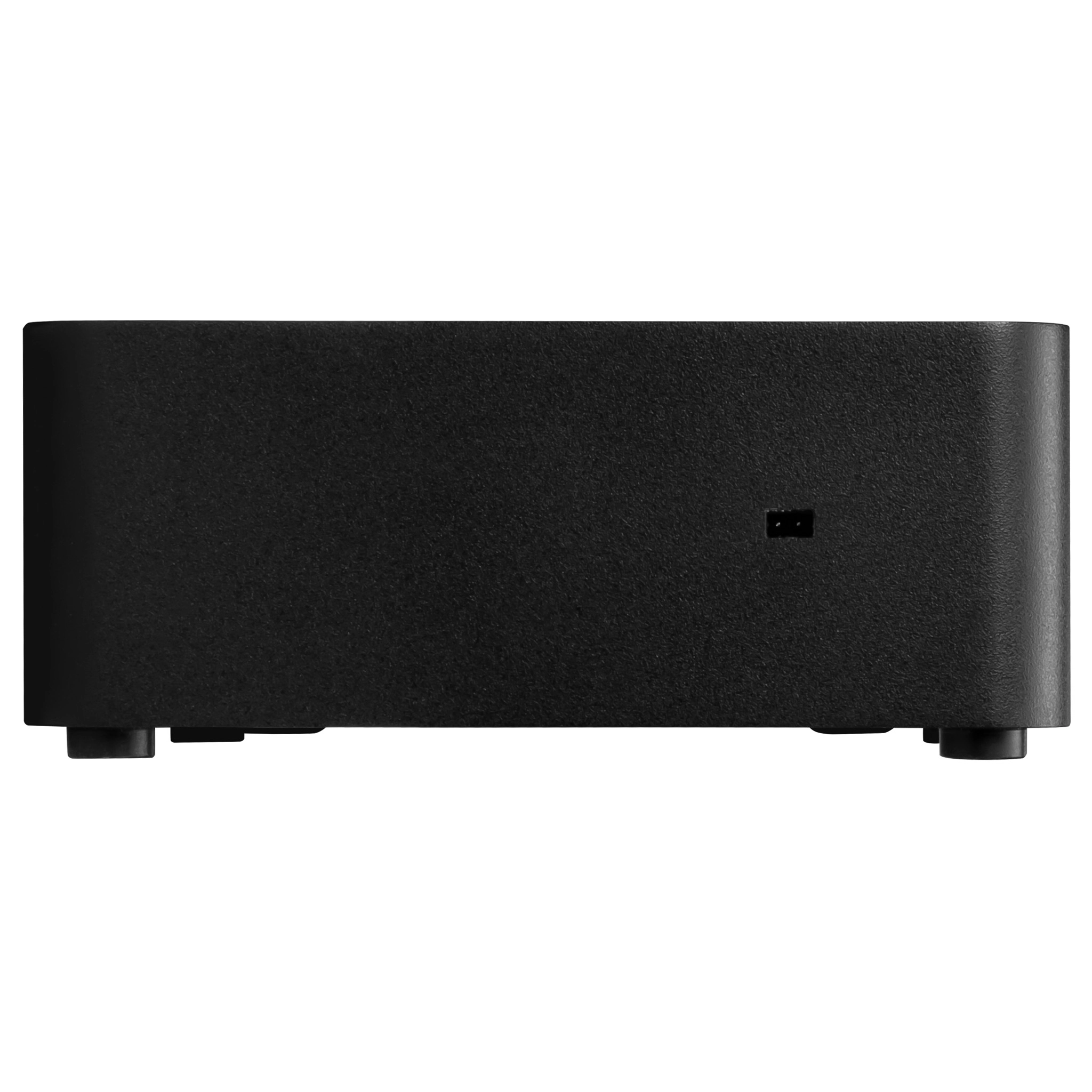

Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Housing material	Plastic
Performance
Product type	Mini PC (<= 3L) barebone
Motherboard chipset	Intel SoC
Motherboard form factor	NUC
Built-in speaker(s)	N
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Power
Power supply	120 W
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 90 procent
Certificates
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Weight & dimensions
Width	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Weight	0.625 g
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Packaging content
Display included	N
Mouse included	N
Keyboard included	N
AC adapter included	Y
Power cord included	Y
Other features
Power supply type	External AC adapter

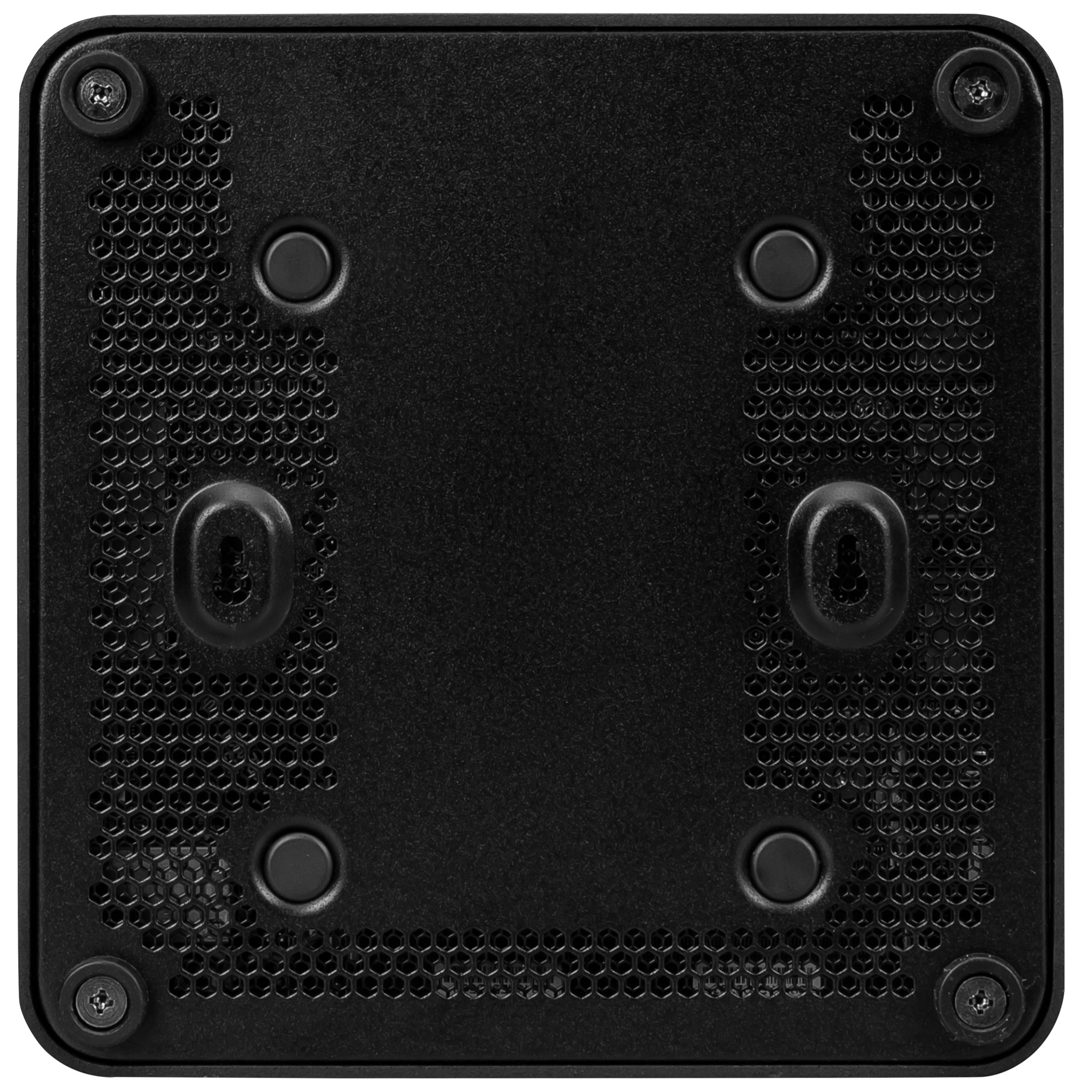

Panel mounting interface	100 x 100 mm
Number of displays supported	4
Number of M.2 (M) slots	2
Graphics adapter family	Intel
Warranty period	3 jaar
Cooling type	Active
