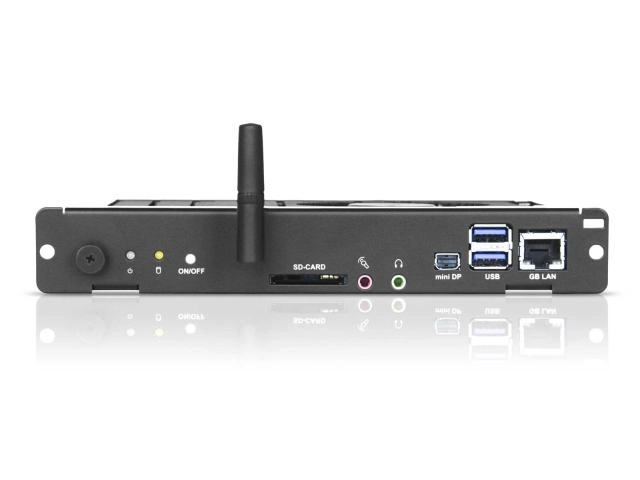

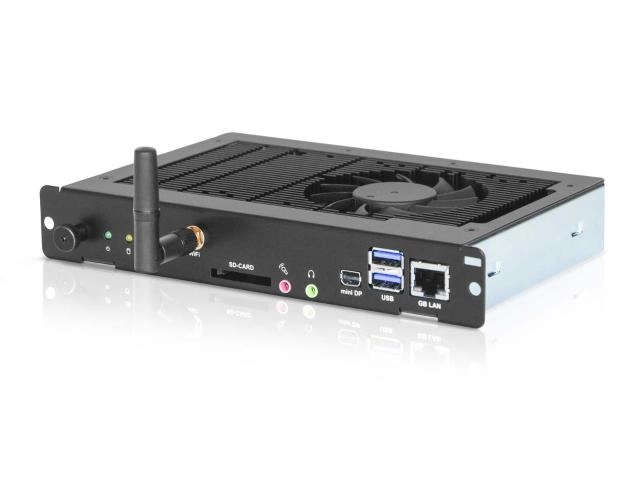

OPS-Sky-i5v-s4/128/W7p/W



NEC
Not in stock
€ 1.085,01
€ 1.312,86 incl 21% VAT
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Tailor-made solution - extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- Secure greatness - 6th generation Intel® vProTM processors deliver security protection as well as AMT remote management functionality for the enterprise.
- Ideal for Digital Signage - compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.
- Economical - enjoy more performance whilst consuming less power.

Specification

Product
Product id 564037
Brand NEC
Partnr 100014411
EAN/UPC code 4260400612593
Processor
Processor family Intel Core i5-6xxx
Processor model i5-6440EQ
Processor cores 4
Processor frequency 2.7 GHz
Processor boost frequency 3.4 GHz
Processor socket BGA1440
Processor cache 6 MB
Processor cache type Smart Cache
Processor threads 4
System bus rate 8 GT/s
Bus type DMI3
Processor lithography 14 nm
Processor operating modes 64-bit
Processor series Intel Core i5-6400 Mobile Series
Thermal Design Power (TDP) 45 W
Processor codename Skylake
Tcase 100 °C
Tjunction 100 °C
Maximum number of PCI Express lanes 16
PCI Express slots version 3.0
PCI Express configurations 1x16, 1x8+2x4, 2x8
Number of processors installed 1
Stepping R0
Maximum internal memory supported by processor 64 GB
Memory types supported by processor DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max) 34.1 GB/s
Memory channels supported by processor Dual
ECC supported by processor N
Memory
Internal memory 4 GB
Internal memory type DDR4-SDRAM
Maximum internal memory 16 GB
Memory slots 2x SO-DIMM
Memory clock speed 2133 MHz
Storage
Total storage capacity 128 GB
Optical drive type N
Card reader integrated Y
Storage media SSD
Number of storage drives installed 1
Number of SSDs installed 1
SSD capacity 128 GB
SSD interface Micro Serial ATA III
Compatible memory cards SD
Graphics
On-board graphics adapter Y
Discrete graphics adapter model Not available
On-board graphics adapter family Intel HD Graphics
On-board graphics adapter model Intel HD Graphics 530
Maximum on-board graphics adapter memory 64 GB
Number of displays supported (on-board graphics) 3
On-board graphics adapter dynamic frequency (max) 1000 MHz
On-board graphics adapter base frequency 350 MHz
On-board graphics adapter ID 0x191B
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.4
Network
Ethernet LAN Y
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Wi-Fi Y
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
DVI port N
Mini DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
Microphone in Y
Headphone outputs 1
RS‐232/422 port Y
Design
Product colour Black
Performance
Product type Embedded PC
Processor special features
Graphics & IMC lithography 14 nm
CPU configuration (max) 1
Processor code SR2DU
Supported instruction sets AVX 2.0, SSE4.1, SSE4.2
Processor package size 42 x 28 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Y
Intel Software Guard Extensions (Intel SGX) Y
Intel Enhanced Halt State Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Processor ARK ID 90425
Intel Virtualization Technology (VT-x) Y
Intel HD Graphics Y
Enhanced Intel SpeedStep Technology Y
Intel 64 Y
Intel® Wireless Display (Intel® WiDi) Y
Intel® vPro™ Technology Y
Intel® InTru™ 3D Technology Y
Intel® Insider™ Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Execute Disable Bit Y
Intel Trusted Execution Technology Y
Intel® OS Guard Y
Intel® Secure Key Y
Intel® AES New Instructions (Intel® AES-NI) Y
Thermal Monitoring Technologies Y
Embedded options available Y
Intel Clear Video Technology Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel TSX-NI Y
Idle States Y
Intel® Turbo Boost Technology 2.0
Intel® Hyper Threading Technology (Intel® HT Technology) N
Intel® Quick Sync Video Technology Y
Intel® Identity Protection Technology (Intel® IPT) Y
Conflict-Free processor Y
Power
Power consumption (typical) 45 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 90 procent
Certificates
Certification CE / FCC class A
Weight & dimensions
Width 120 mm
Depth 200 mm
Height 30 mm
Weight 900 g
Package width 200 mm
Package depth 260 mm
Package height 60 mm
Package weight 1000 g
Packaging content
Display included N
