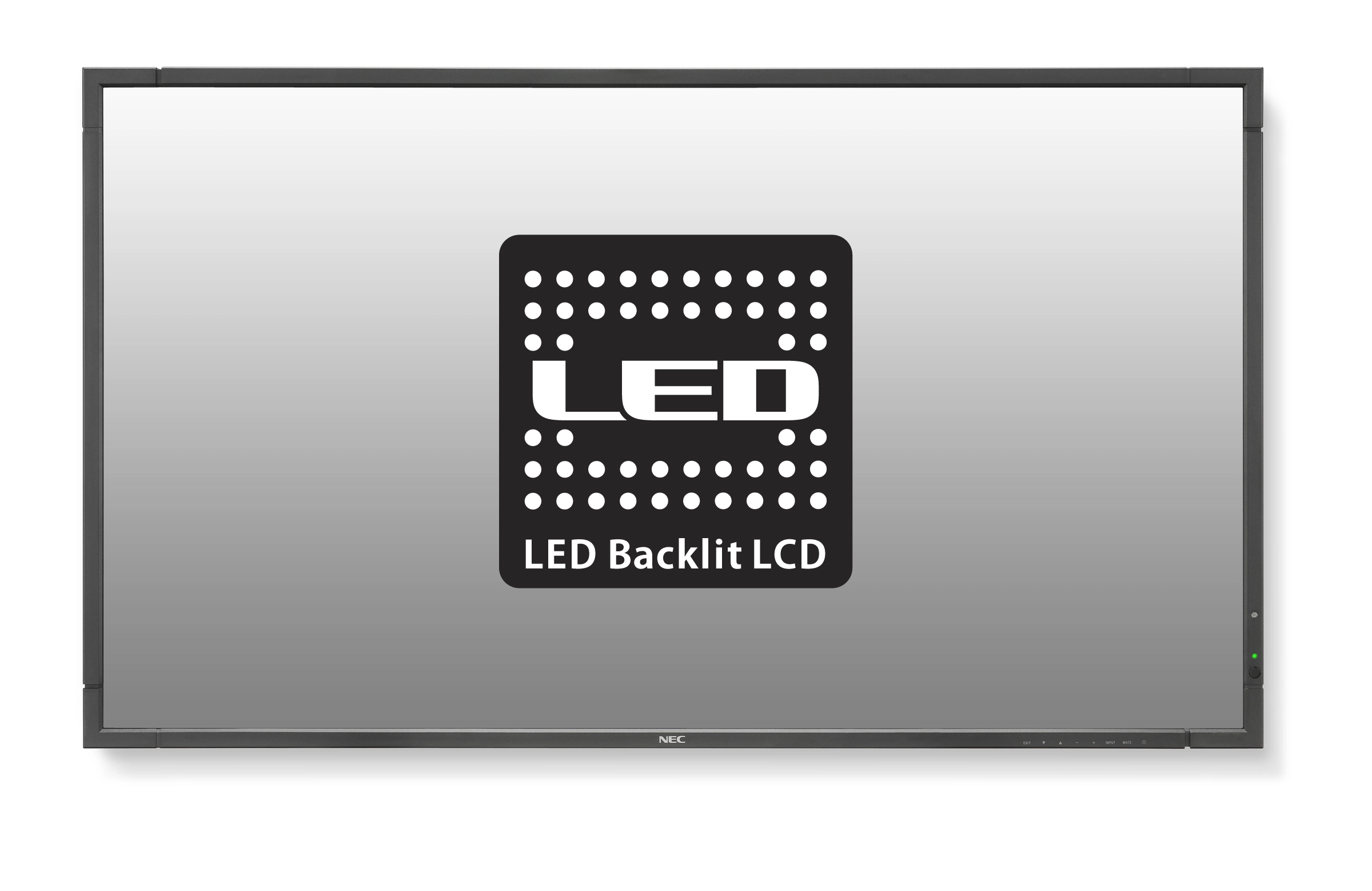

NEC MultiSync® E705 SST is the new multi-touch product of NEC’s E Series boasting 70" in size. Based on the new touch technology ShadowSense™ the display delivers true multi-touch support with up to 6 simultaneous touch points. ShadowSense™ touch is an innovative and patented optical position sensing technology. Unlike other optical technologies that utilize cameras or imaging arrays, ShadowSense™ designs use high performance sensors to provide unprecedented performance, stability, and accuracy. Thanks to anti reflective coating, reflections are reduced to a minimum which significantly increases the readability of the content shown.

E705 SST is ideal for any kind of interactive whiteboard usage in meeting rooms and class rooms with operating hours limited to 12/7.

- Multi-Touch - true multi-touch support with up to 6 simultaneous touch points for all major operating systems.
- ShadowSense™ Touch - offering real-time tracking of all touch points (6 to 8 ms response time) and sub-2 mm touch point accuracy. No ghost touches or dead zones.
- High Ambient Light Operation - enhanced filtering and analogue sensors allow operation in bright condition up to full sunlight.
- Static Object Detection and Rejection - solid touch activation of any objects ≥ 4 mm in diameter. Possible usage with finger, gloved hand and stylus. Configurable hover distance for touch detection and palm rejection.
- Driver-free - no need to install any drivers on the host PC for all major operating systems. Interface to host PC is USB HID protocol with no drivers, calibration or application software on the host.
- Protective Glass - single anti-reflection coating for perfect visibility, premium toughened glass for security.
- Automatic Touch Detection - detect and switch automatically between interaction from a finger, eraser or pen device (supported by Microsoft Office 2013, DisplayNote NEC Edition).

Specification

Product
Product id	495414
Brand	NEC
Partnr	60003922
EAN/UPC code	5028695112155
Warranty (months)	3 years
Display
Display diagonal	70 inch
Display type	LCD
Display resolution	1920 x 1080 Pixels
Display brightness	340 cd/m²
HD type	Full HD
Touchscreen	Y
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Active display area (W x H)	1539 x 866 mm
Display diagonal (metric)	178 cm
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Horizontal scan range	31.5 - 91.1 kHz
Vertical scan range	50 - 85 Hz
Supported video modes	1080p, 480i, 480p, 576i, 576p, 720p
Ports & interfaces
HDMI ports quantity	2
DVI port	Y
DVI-D ports quantity	1
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	100 Mbit/s
Audio (L/R) in	2
Audio (L/R) out	1
RS-232 interface	Y
RS-232C	Y
USB port	Y
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	20 W
Design
Product colour	Black
VESA mounting	Y
Panel mounting interface	400 x 400 mm
Bezel width (top)	33 mm
Bezel width (side)	41 mm
Bezel width (bottom)	33 mm
Performance
TV tuner integrated	N
HDCP	Y
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Power
Power consumption (typical)	168 W
Power consumption (standby)	0.5 W
Energy Star certified	Y
Computer system
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Width	1657 mm
Depth	105.5 mm
Height	968 mm
Weight	70000 g
Packaging content
Handheld remote control	Y
Cables included	AC, DVI, USB
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 procent
Certificates
RoHS compliance	Y
Thin Client
Thin client installed	N
Other features
Glass protection	Y
Manual	Y
Bezel width	41
Energy efficiency class	Unspecified
